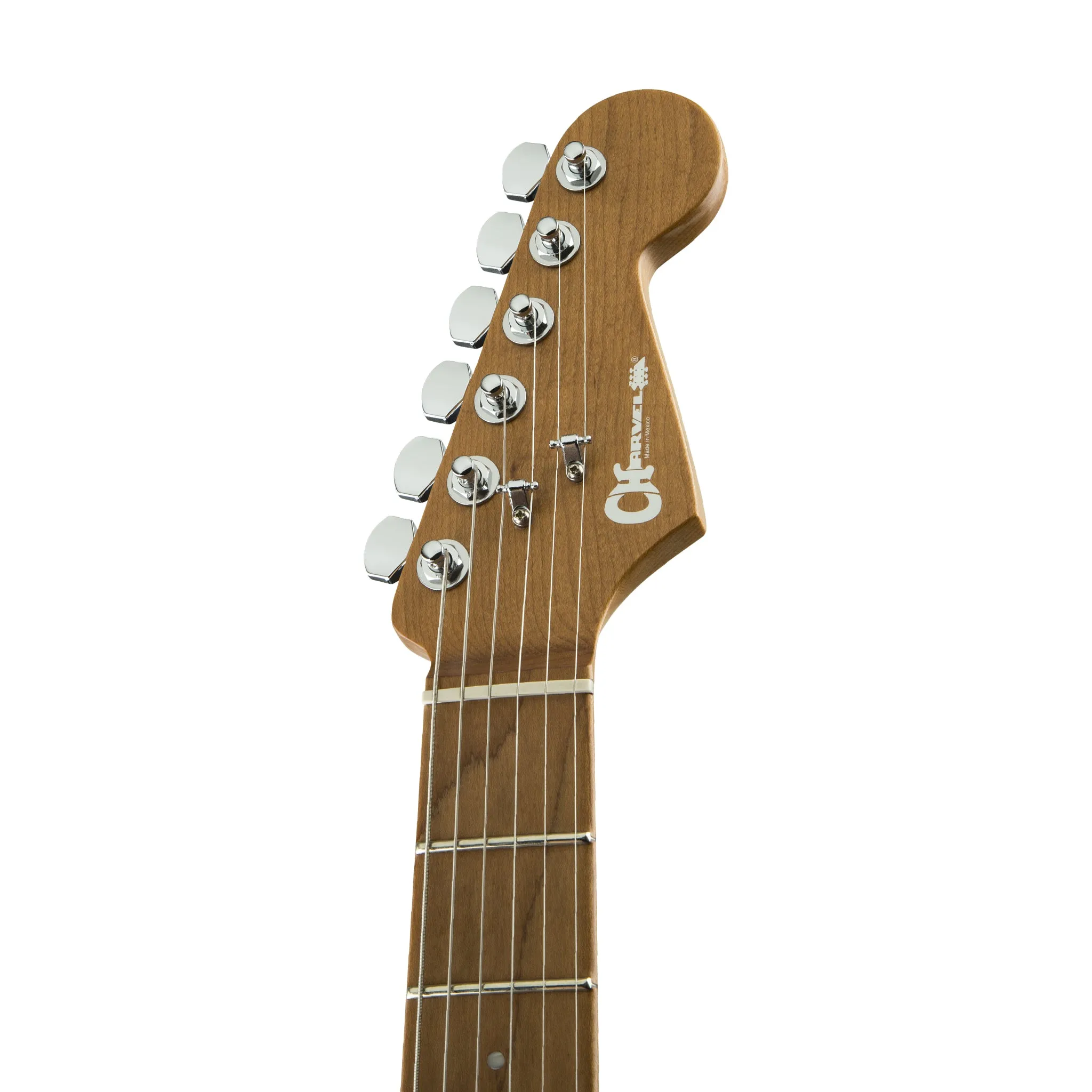

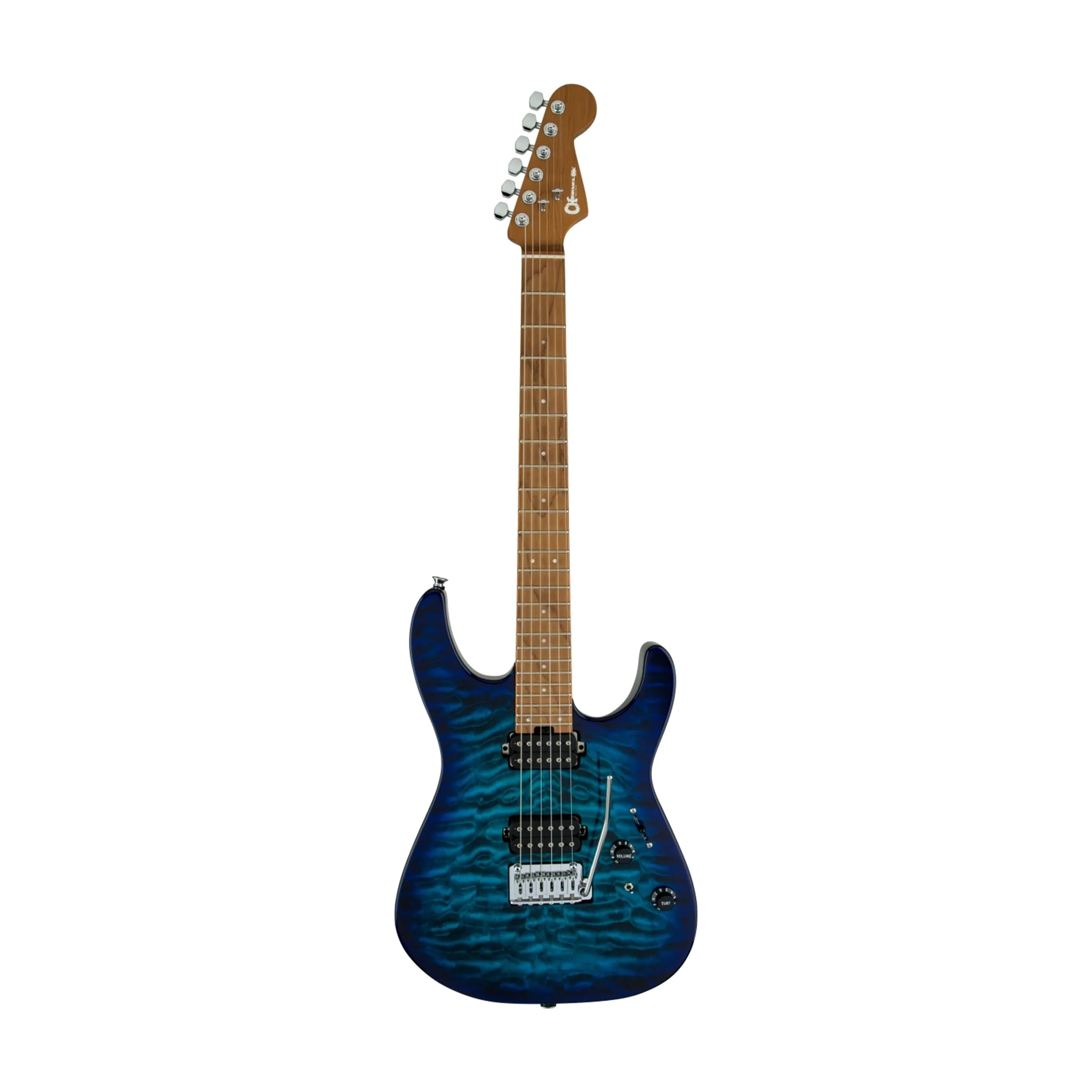

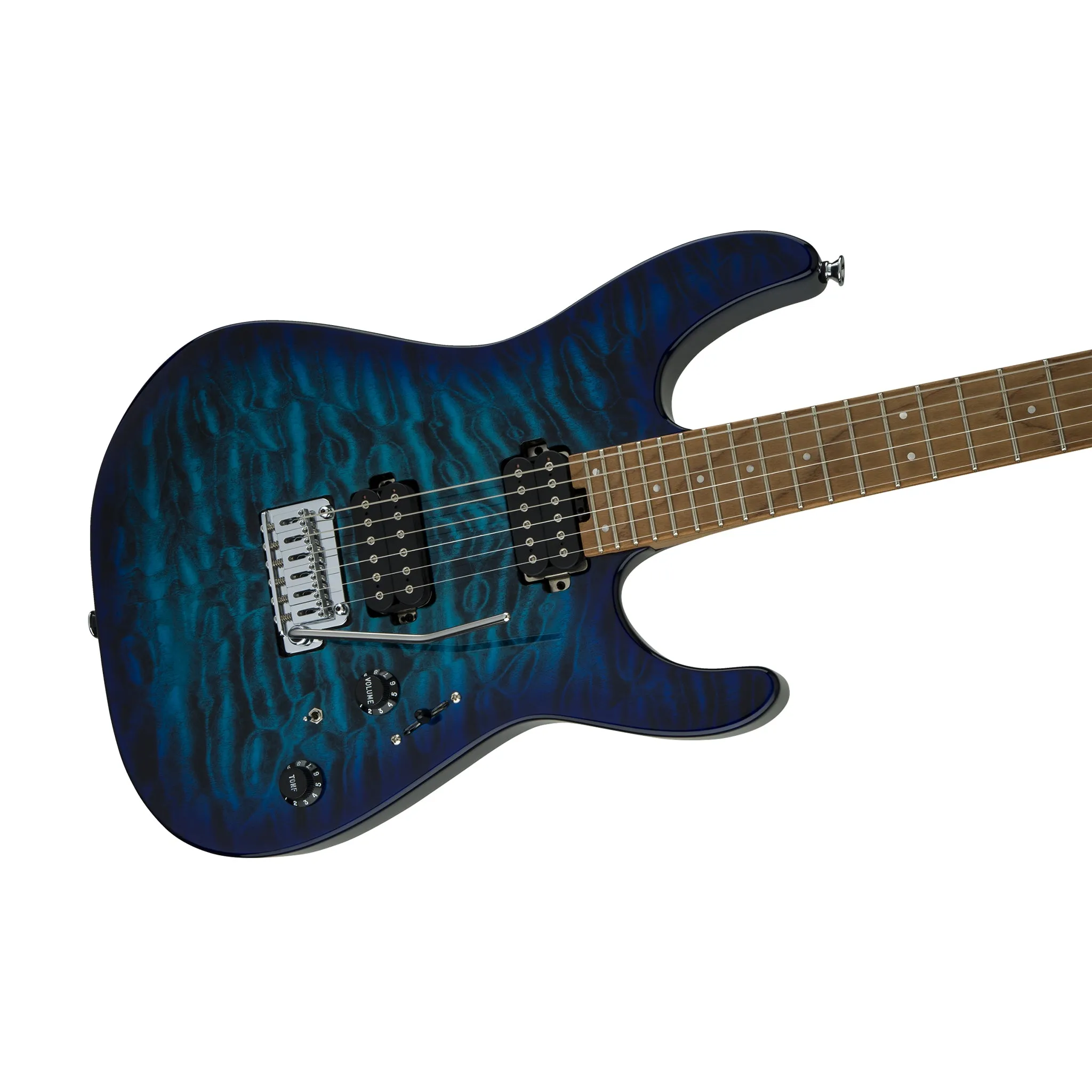

Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky™ style is completed with an elegant quilt maple top dressed in a captivating Chlorine Burst finish. The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe offers an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred SH-10B bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Blending sophisticated style with assertive tone, the DK24 HH 2PT CM QM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

Specifications:

• Body Shape: Dinky
• Body Material: Quilt Maple (Top), Alder (Body)
• Body Colour: Chlorine Burst
• Body Finish: Gloss
• Fretboard Material: Caramelized Maple
• Fretboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Scale Length: 25.5" (648 mm)
• No. of Frets: 24
• Fretboard Inlays: 4mm Pearloid Dot
• Pickup(s): Seymour Duncan® Custom Full Shred™ SH-10B (Bridge), Seymour Duncan® Alnico II™ Pro APH-1N (Neck)
• Bridge: Gotoh® Custom 510 Tremolo
• Pickguard: None
• Strings: Nickel Plated Steel (.009-.042 Gauges)

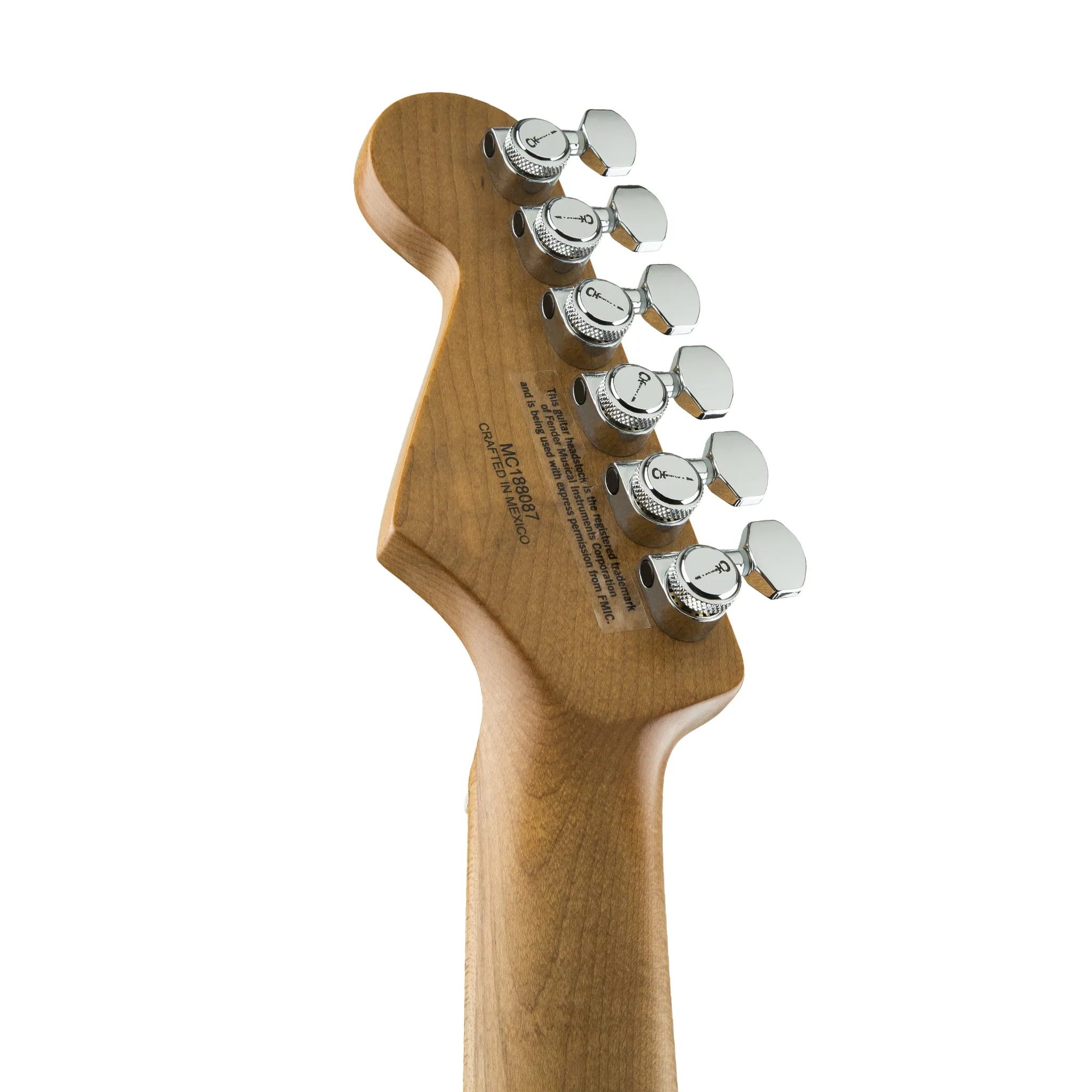

• Tuning Machines: Charvel®-Branded Die-Cast Locking
• Hardware Finish: Chrome
